Highlights
High-Powered Motor

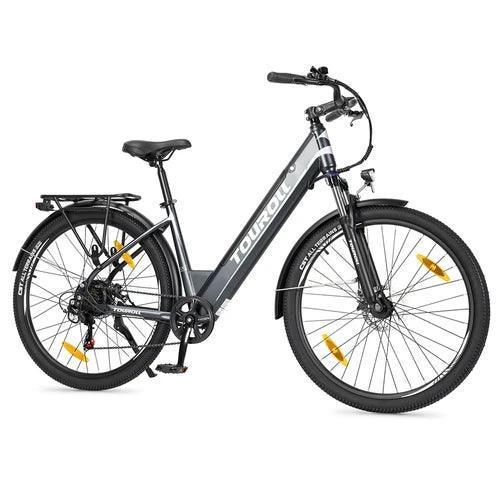

The Touroll J1 ST boasts a powerful brushless motor that delivers 45N.M torque, and a cut-off speed of 25km/h. The robust motor presents low maintenance requirements and provides consistent power delivery on flat terrain, perfect for urban commuting and recreational excursion.
Efficient Removable Battery
Equipped with a replaceable 561.6 Wh lithium-ion battery, the J1 ST e-bike has a maximum range of 100km in assist mode, so whether you're on a daily commute or a long-distance cycling adventure, it's up to the task. With the J1 ST e-Bike, you can enjoy a hassle-free riding experience.

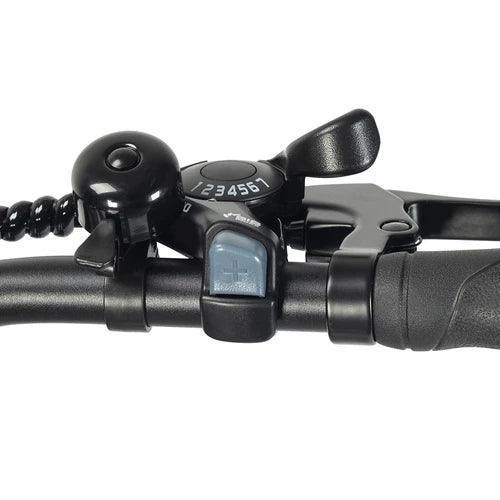

27.5x2.1" Big Tires & 7-Speed Shimano Gear
The J1 ST electric bike features 27.5-inch premium pneumatic rubber tires, which provide improved traction and stability on all terrains for effortless and stable uphill climbing and a smooth ride on uneven pavement. It comes with a 7-speed professional Shimano derailleur that lets you enjoy the thrill of shifting gears and hitting the road with ease.

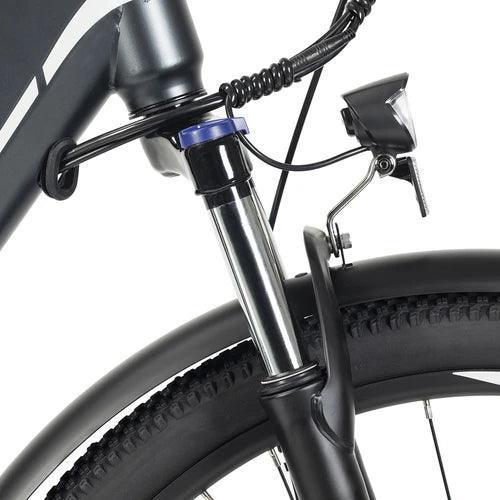

Reliable Suspension with a Lockout
Mechanical shock absorbers with 80mm of suspension travel protect riders from joint pain and spinal injuries by absorbing the shock and vibration for a smooth, firm ride. With the locking design, you can switch the shock absorber on or off for a fast ride on flat roads or a comfortable ride on bumpy hills.

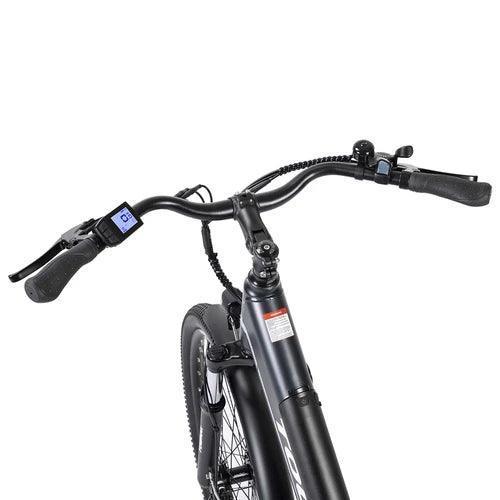

Intelligent LCD & 5 Assist Levels
The J1 ST comes with a smart LCD with a USB port, which not only keeps you up to date with important data, such as real-time speed but also allows you to charge your digital devices when needed. The display also lets you easily switch between 5 pedal assist levels, including 12, 15, 18, 21, and 25 km/h, as well as activating the 6 km/h walk mode.

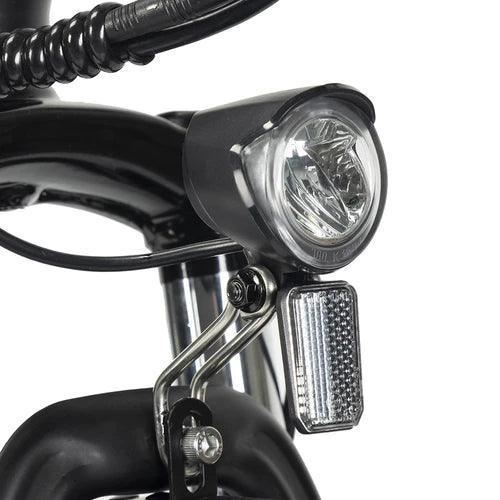

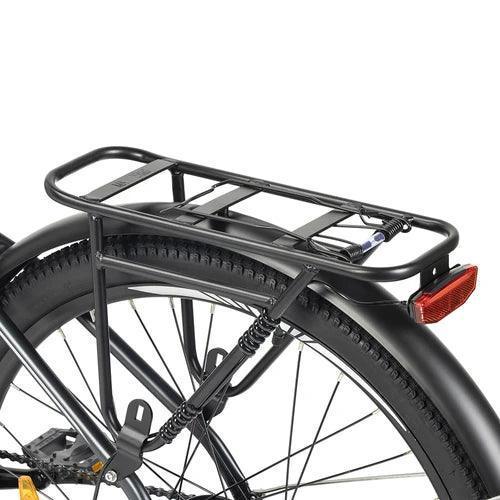

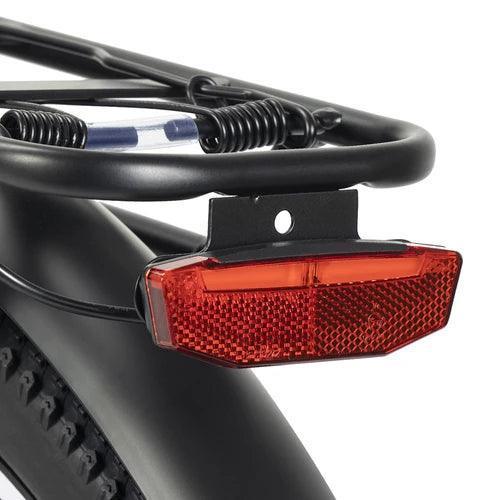

StVZO-certified Bike Lights & Sturdy Luggage Rack
Due to the StVZO-certified bike light on the trekking bike J1 ST, the beam significantly increases visibility on the road without dazzling other road users, resulting in safer street-legal riding. The sturdy luggage rack can effectively reduce the burden of traveling, making it ideal for shopping, commuting, and a long tour.
Adjustable Stem & Protective Mudguards
With an adjustable stem, you can customize the angle and height of your handlebars for the most comfortable riding position. The front and rear mudguards keep water and mud from splashing in bad weather, making the J1 ST the perfect everyday companion!
Specification
General |
Brand: Touroll
Model: J1 ST
Color: Black
|
Basic Specification |
Net Weight: 26.9kg
Unfolded Size: 1810x680x1130mm
Size of Frame: 27.5"x17.5"
Length of Handlebar: 680mm(26.8")
Height of Saddle (from the ground): 32.3"-40.2"
Recommended Rider Height: 155-195cm (around 5' 1"-6' 5")
Max Load of Bike: 120kg
Cut-off Speed: 25km/h
Max Range: 100km (Assist Mode)
Pedal Assist Levels: 12/15/18/21/25 km/h
Walk Mode: 6km/h
Waterproof Level: IPX4
Material: STL
Braking System: Mechanical Disc Brake & E-Brake
Suspension: Mechanical Shock Absorber with a Lockout
|
Motor |
Type: Hub Motor
Rated Voltage: 36V
Max Output Torque: 45N.M
|
Derailleur |
Brand: Shimano
Number of Gears: 7 (Rear)
|
Battery |
Capacity: 15.6Ah
Voltage: 36V
Charging Time: 6-8h
Power Capacity: 561.6Wh
Protection System: Yes
|
Charger |
Input: 100-240V, 2.0A
Output: 42V, 2.0A
|
Tires |
Brand: CST
Size: 27.5x2.1"
Type: Pneumatic Rubber Tires
Tire Pressure: 40-70PSI
Best Tire Pressure: 45-65PSI
|
Display |
Size: 1.8"
Type: LCD
Information: Speed, Battery Level, Trip Distance/Odometer, Assist Level, Walk Mode, Light Mark, Brake Mark
Functions: Power on/off, turning light on/off, shifting assist levels, activating walk mode, removing trip data, setting screen timeout, etc.
|
Package |
Size: 1480x250x780mm
Gross Weight: 29kg
|
Package List |
1 x E-Bike
1 x Charger
1 x Taillight
1 x Headlight
1 x LCD Display
2 x Mudguard (Front & Rear)
2 x Pedal (Left & Right)
2 x Key
4 x Spoke Reflector
1 x Tool Kit
1 x User Manual
|
Note: the max range is achieved under the following conditions: 75kg load, 26℃ temperature, 15km/h constant speed, on flat roads with no strong wind. |
